TM1000pro High precision wire rod Automatic film applicator

TM1000pro High precision wire rod Automatic film applicator has the functions of speed control and coating length adjustment. The glass table is resistant to high temperature and easy to operate. It is suitable for high-precision automatic coating of films in laboratories, and is widely used in laboratories such as university research institutes, new materials, lithium batteries, etc. for film proofing. Support coating sample preparation of coatings, inks, slurries, etc. on substrates such as glass, cardboard, fabric, etc.

  • Coating accessories:Wire Bar

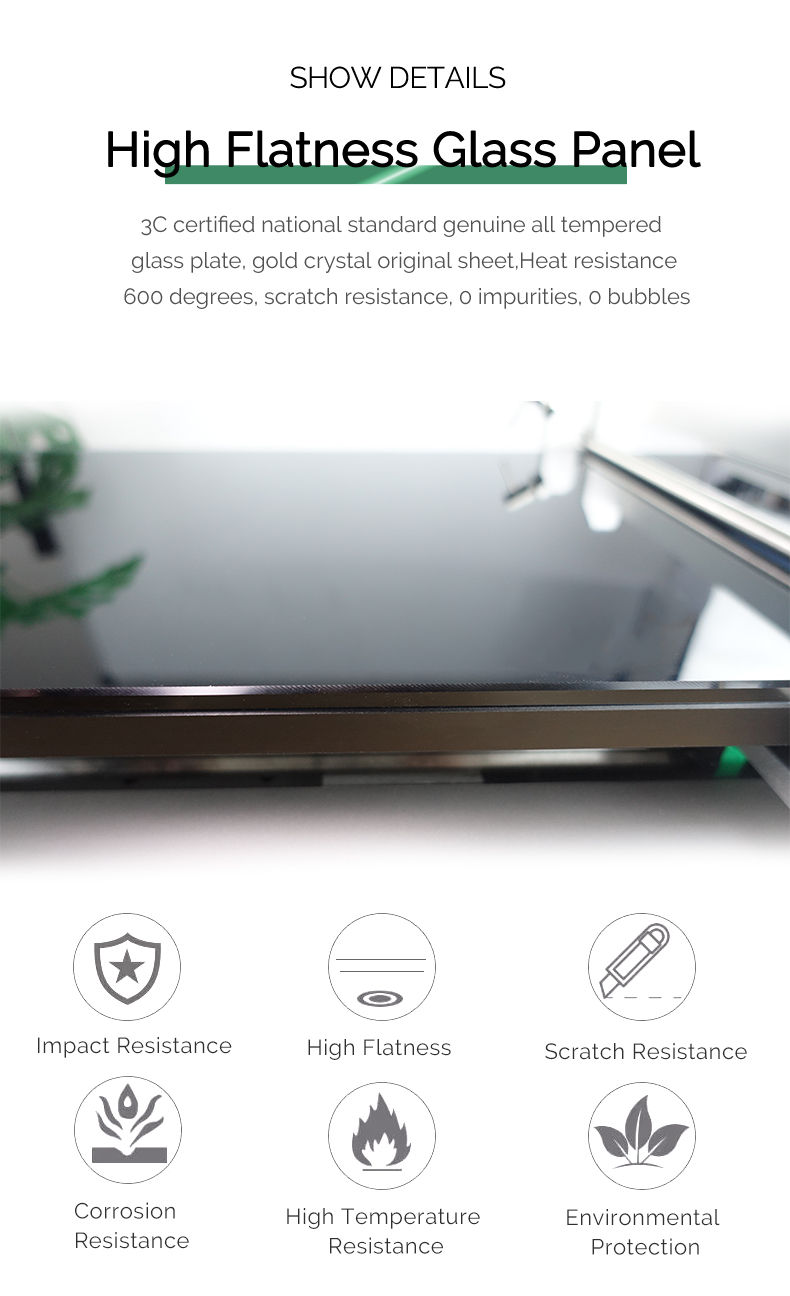

  • Test Platform material:Tempered glass
  • Coating area:300mm * 400mm

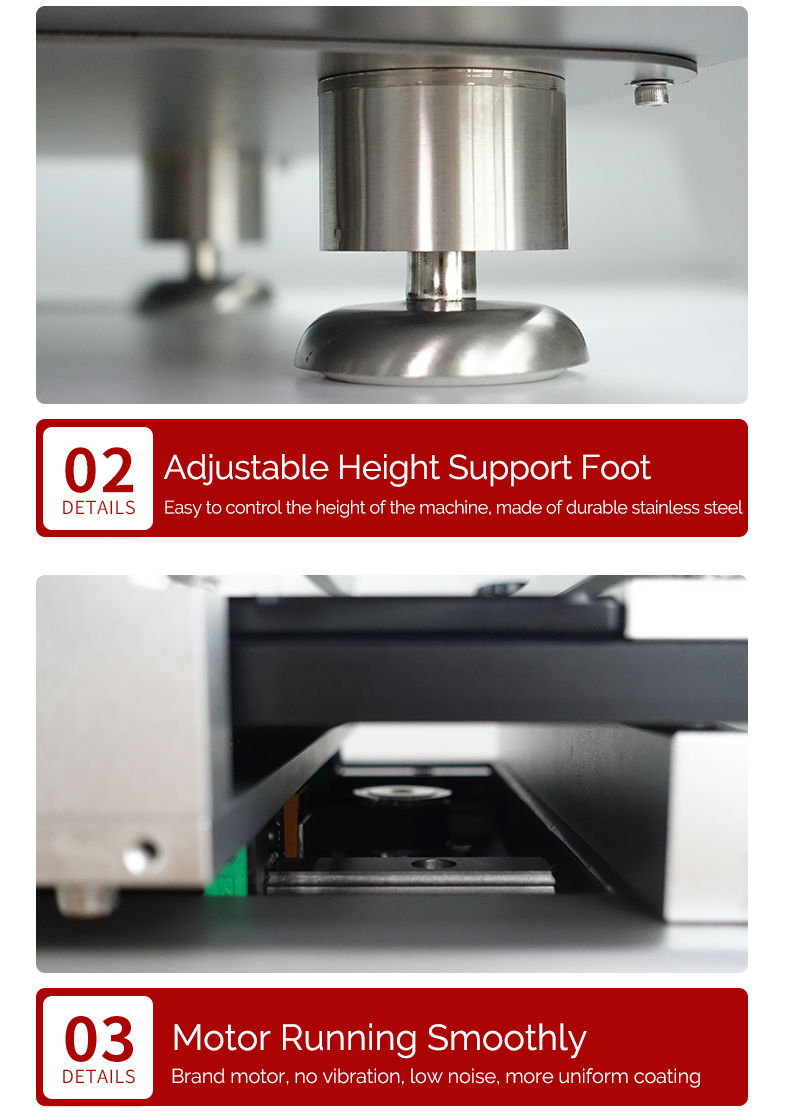

  • configuration:servo motor
on line
phone

Product details

Product Introduction

The automatic film coating machine is a device used for coating thin films in laboratory settings, replacing manual methods with automated processes to enhance coating accuracy and efficiency. The operational principle of the experimental automatic film coating machine involves controlling the coating head and parameters to uniformly apply the sample onto a substrate, forming the desired thin film.

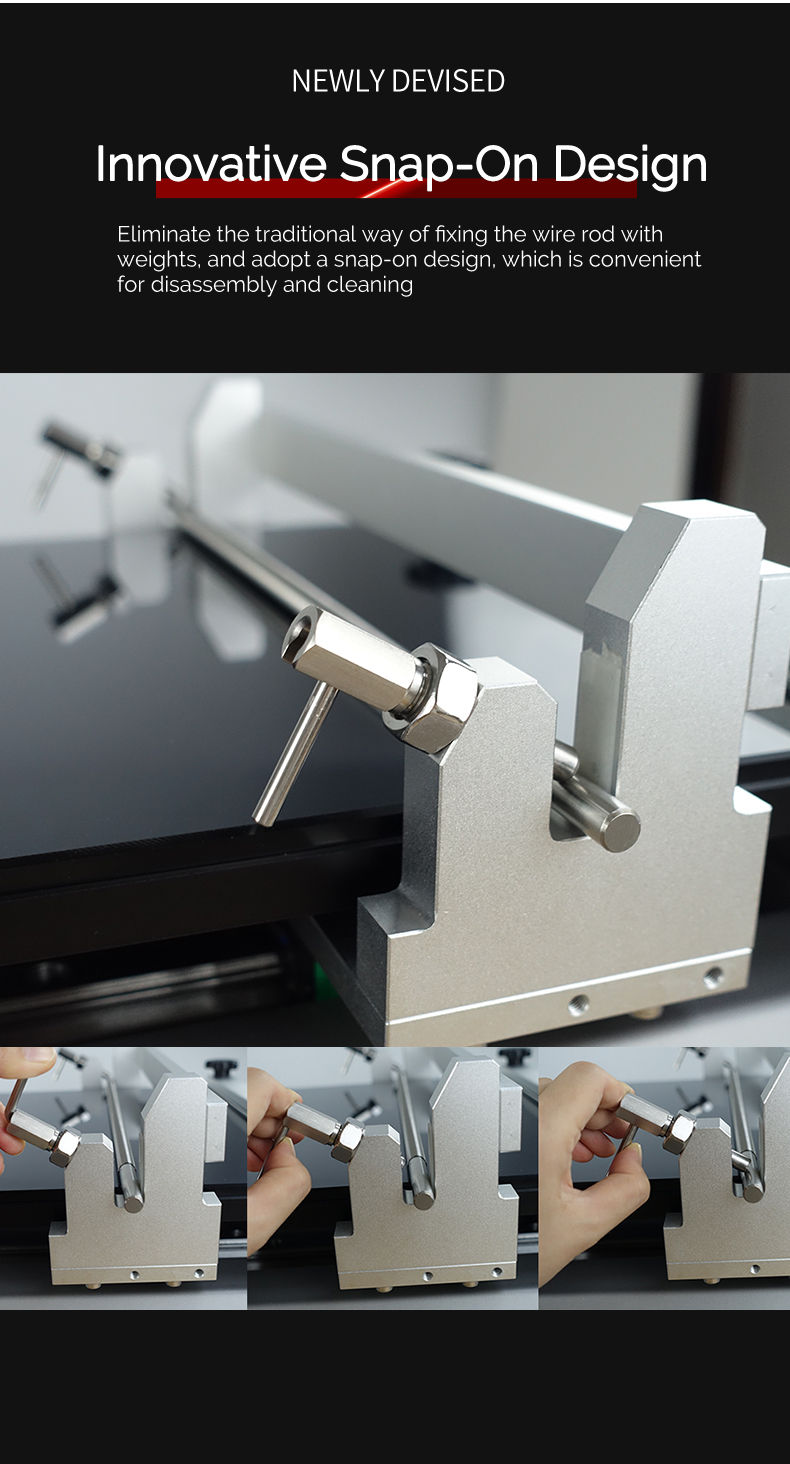

The TM1000pro High-Precision Line Bar Coating Test Machine is a servo motor-based basic model of line bar coating machine with higher coating accuracy. It features a new type of line bar installation method, speed control, and coating length adjustment functions. It is suitable for high-precision automatic film coating in laboratories, widely used in universities, research institutes, and laboratories for new materials and lithium batteries for film production and sampling.

Technical Specifications

  • Model: TM1000pro
  • Coating Method: Line bar coating

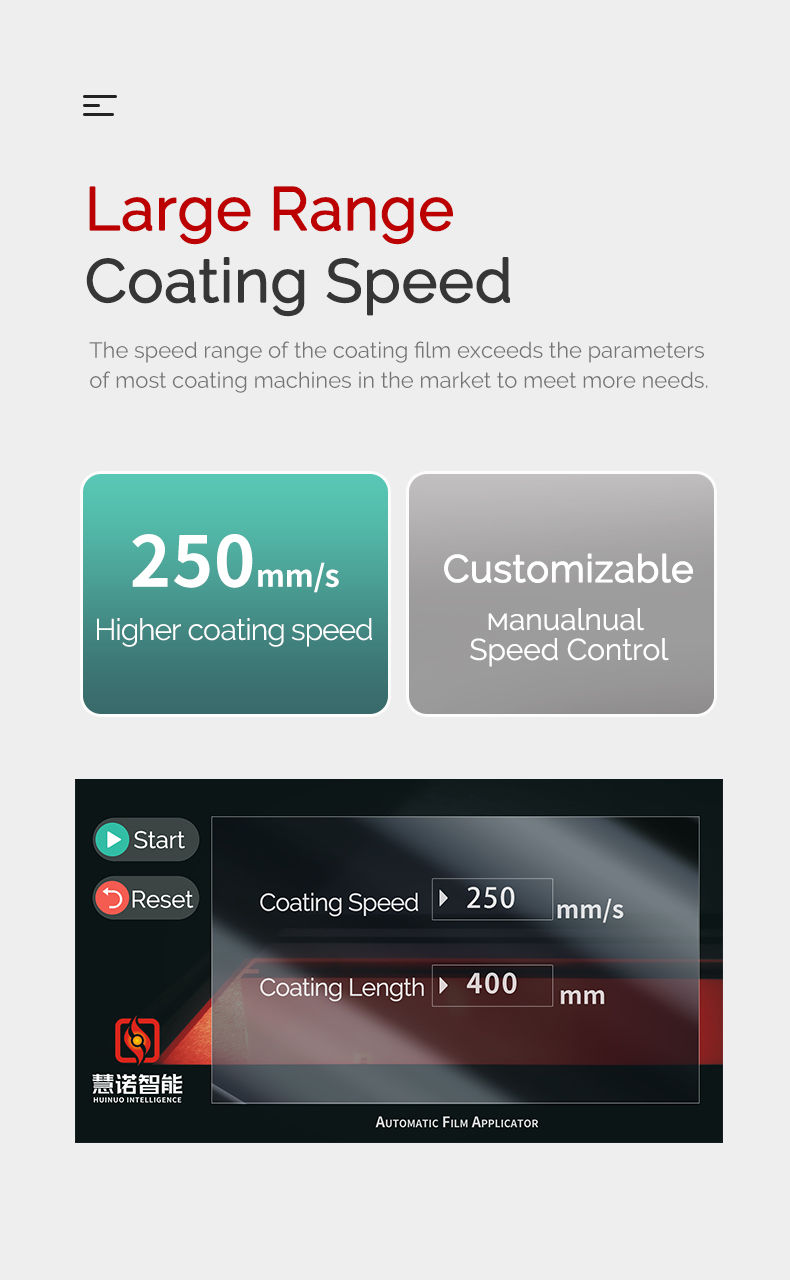

  • Coating Speed: 5~250mm/s infinitely variable speed (customizable)
  • Substrate Fixing Method: Fixture
  • Coating Platform: Glass plate
  • Coating Platform Size: 300mmx600mm
  • Film Thickness: Controlled by line bar, with high-precision imported line bar
  • Line Bar Coating Accuracy: ±0.001mm
  • Effective Coating Area: 300mm*400mm (customizable)
  • Display Screen: Color LCD touch screen
  • Main Power Supply: 220V 50HZ
  • Dimensions: 658mm438mm205mm (LWH)
  • Weight: 39.7kg
  • Optional Functions: Scraper, heating, vacuum adsorption
  • Power: 400w
  • Motor: Servo motor

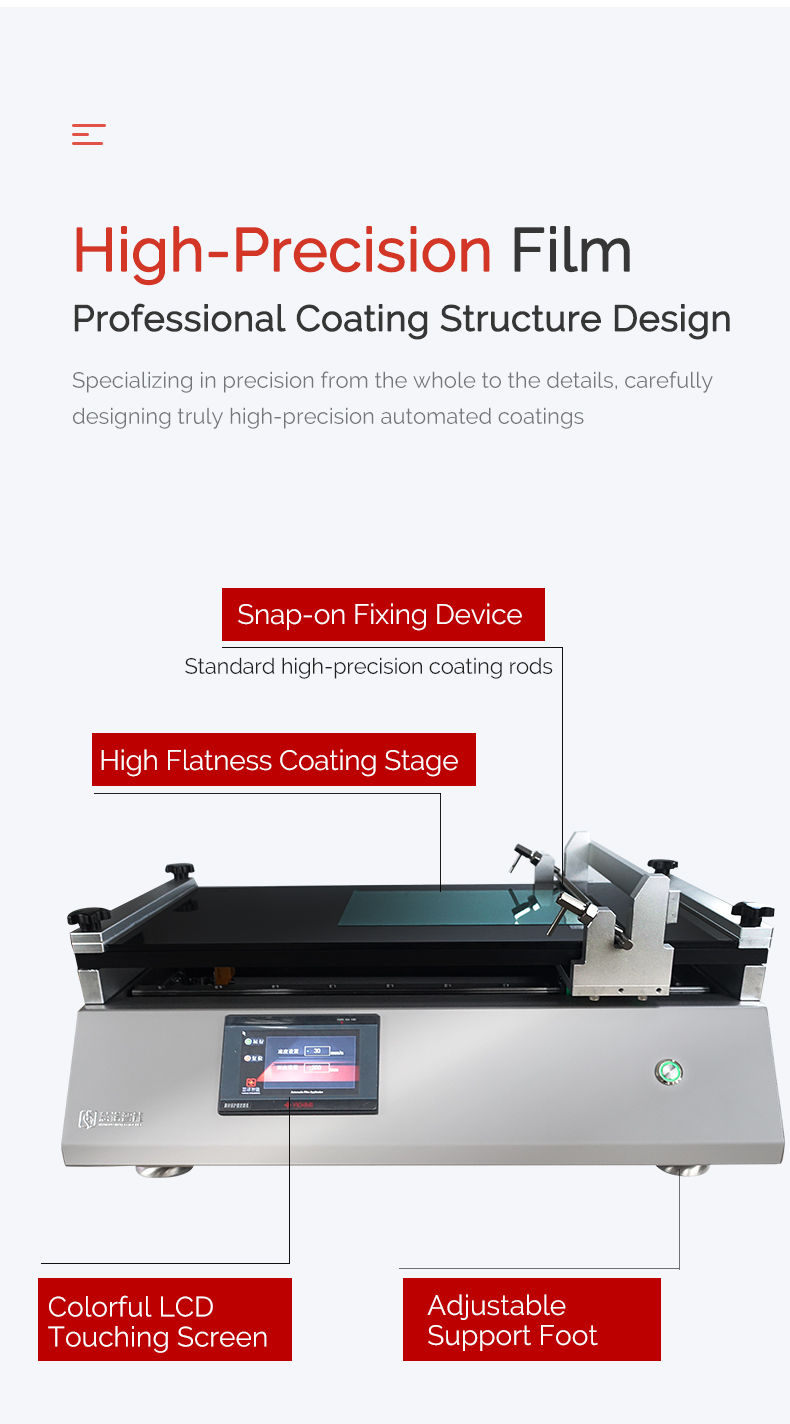

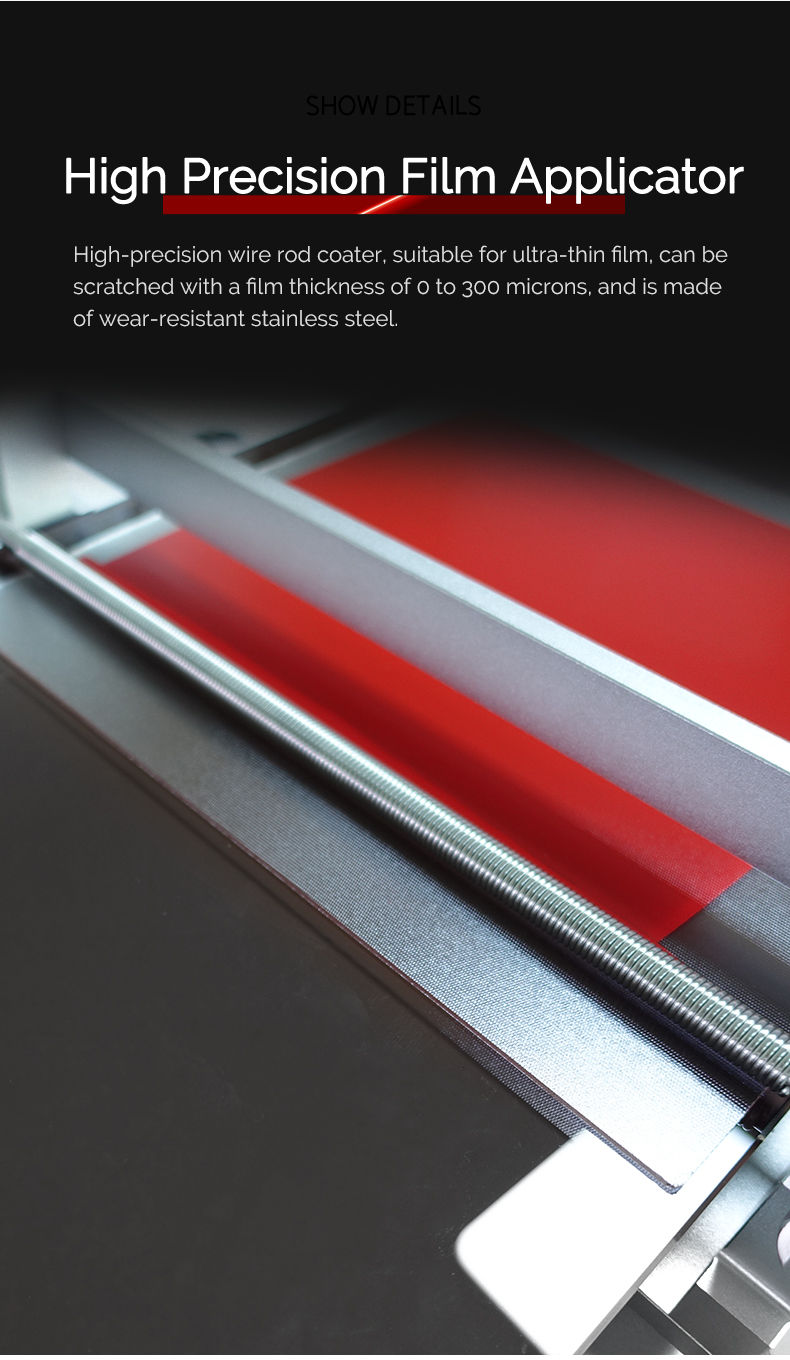

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 1

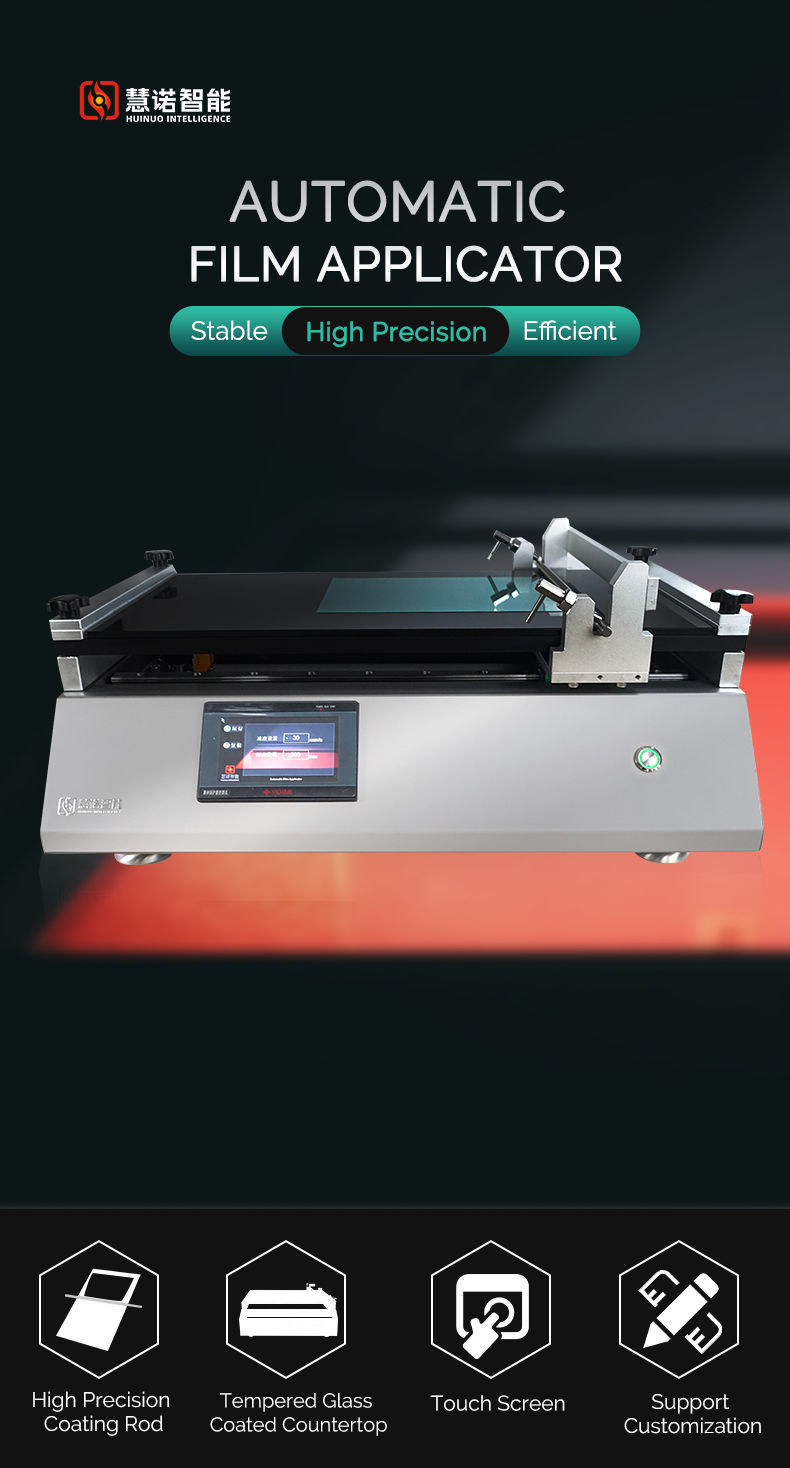

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 2

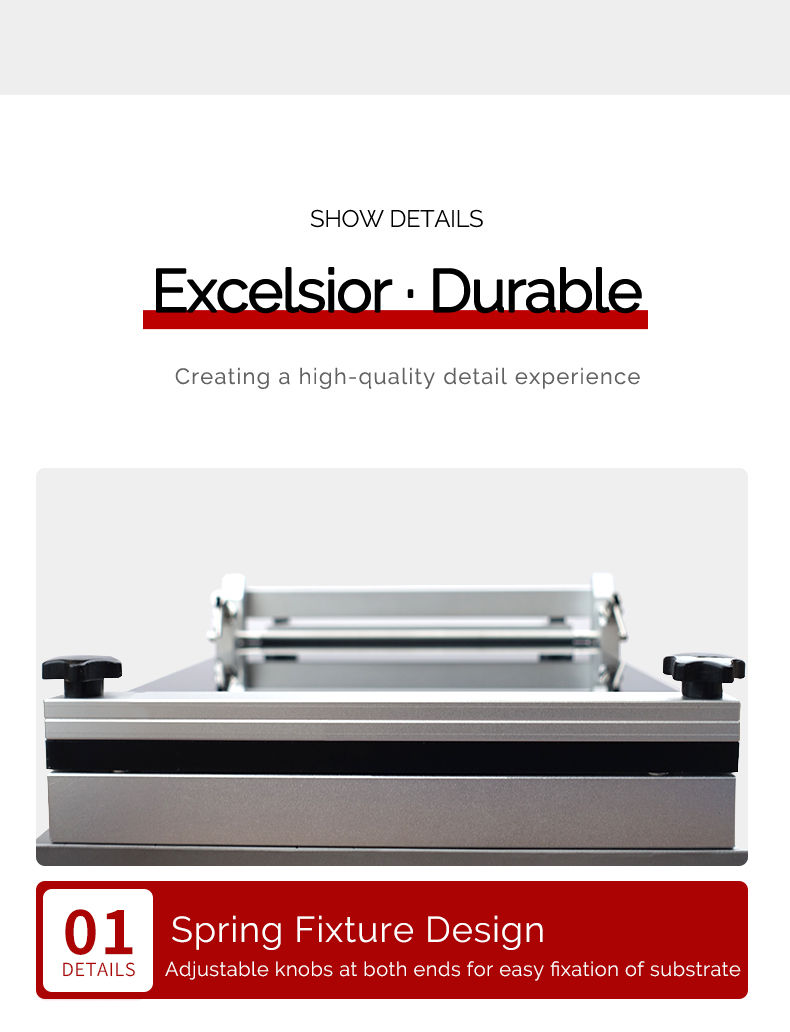

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 3

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 4

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 5

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 6

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 7

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 8

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 9

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 10

TM1000pro High precision wire rod Automatic film applicator Detailed Figure 11
